THz Photonics
The THz Photonics team is part of the Organic Electronics and Photovoltaics group at the ZHAW Institute of Computational Physics (ICP). We are developing a terahertz (THz) system based on an all-organic approach to THz generation and detection. We are exploring the system for a variety of applications ranging from fundamental studies of THz-matter interactions to industrially relevant THz spectroscopy and imaging.
![THz Setup at the ICP](/storage/_processed_/b/e/csm_thz-system_a6a5f6e069.webp)

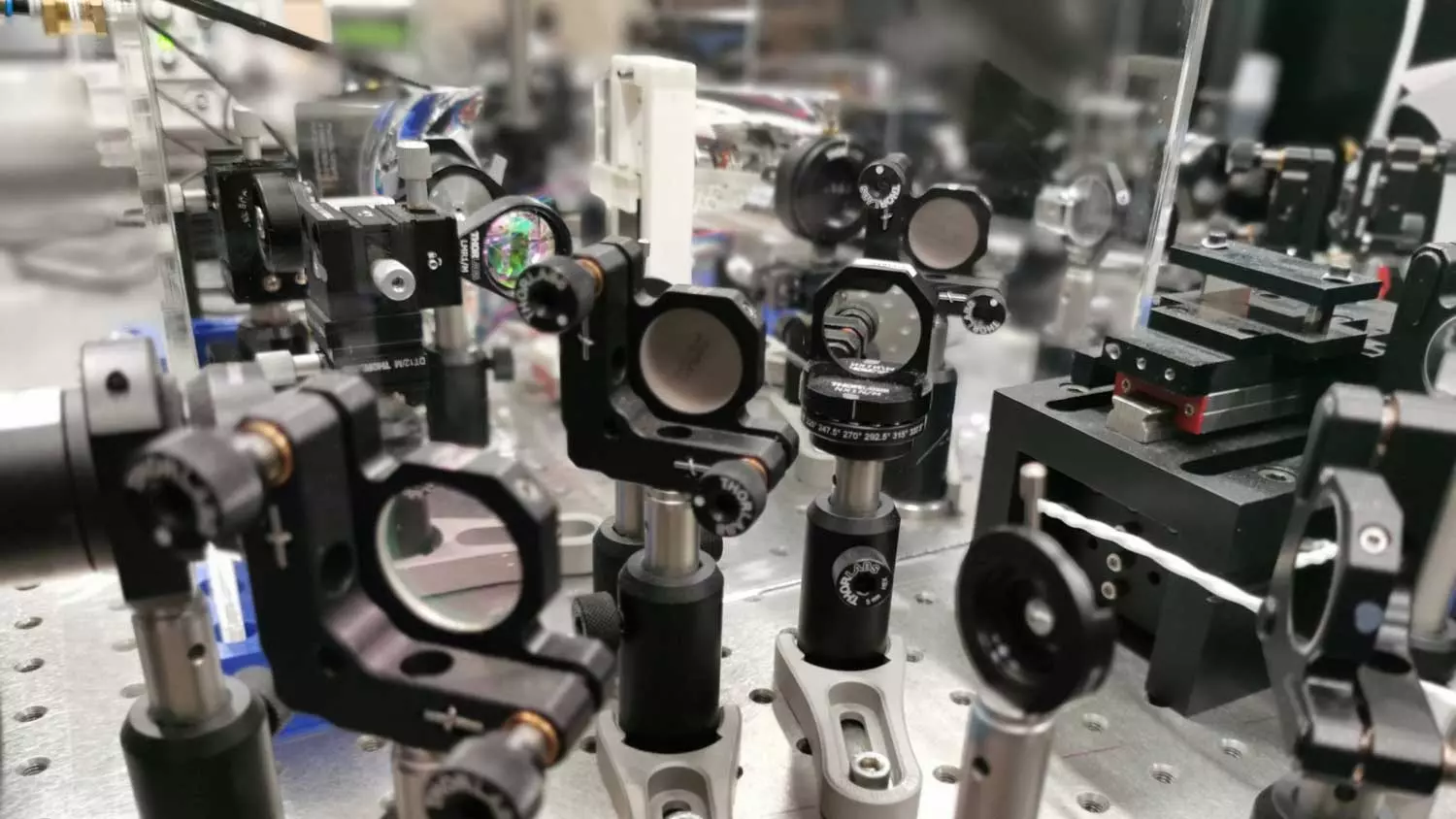

Custom-built, compact THz spectroscopy setup at ICP employing organic electro-optic crystals for ultra-broadband THz-wave generation and detection.
![](/storage/_processed_/5/a/csm_thz-tds-icp_4ee115858e.webp)

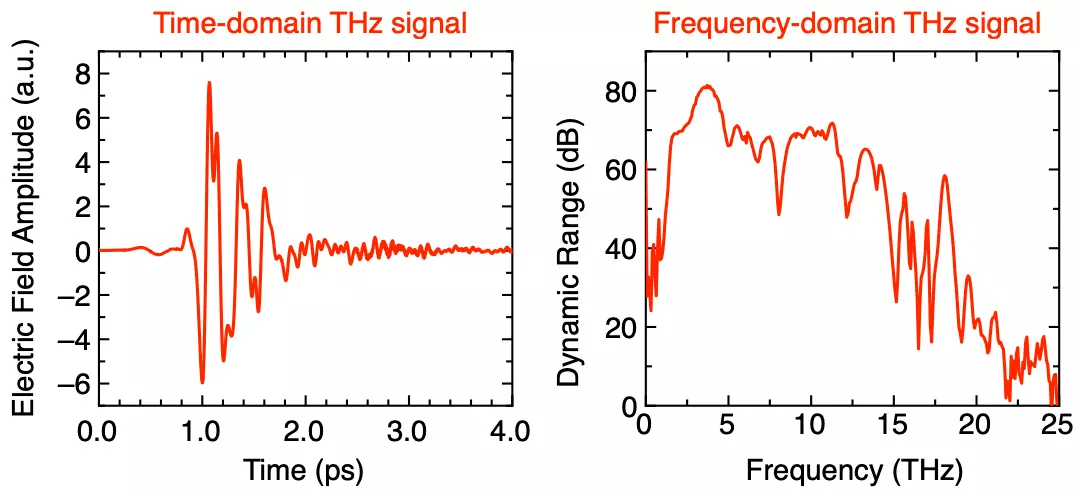

Our THz time-domain spectroscopy (THz-TDS) setup features a high time resolution (few femtoseconds) and an ultra-broadband spectrum up to 20 THz.
![THz phonon modes](/storage/_processed_/9/1/csm_thz-pmb-tfs-icp_eccf64cb11.webp)

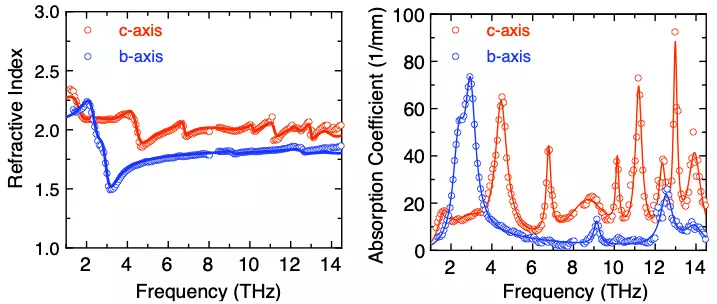

Polarization sensitive, ultra-broadband phonon-mode characterization at ICP. Measurements of the refractive index and absorption dispersion of various materials in the THz band.
![Thz spectrum of water vapor](/storage/_processed_/1/a/csm_thz-water-vapor-icp_41b15ae732.webp)

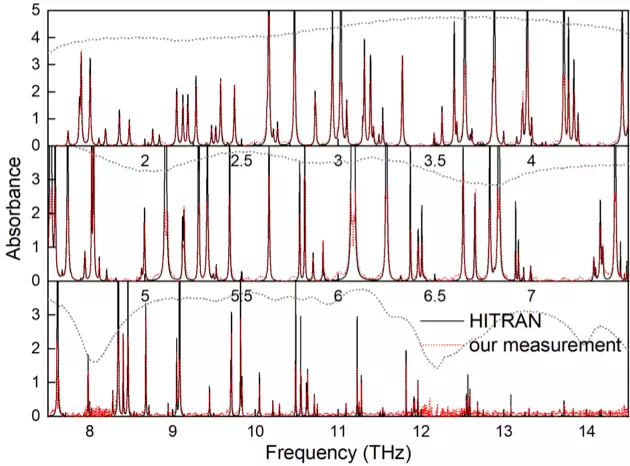

The THz-TDS system at ICP is based on 1560 nm compact fiber lasers and features high frequency resolution (< 3 GHz) and excellent frequency accuracy as well as long-term stability.
The Figure shows the results of our broadband THz-TDS measurement of the water vapor absorption lines of air at room temperature at 30% relative humidity.
![Thz imaging of a leaf](/storage/_processed_/5/8/csm_thz-imaging-icp_c3c0448ca3.webp)
Diffraction-limited THz imaging.
See our publications on Google Scholar.
